Grid Specification

Grid Specification

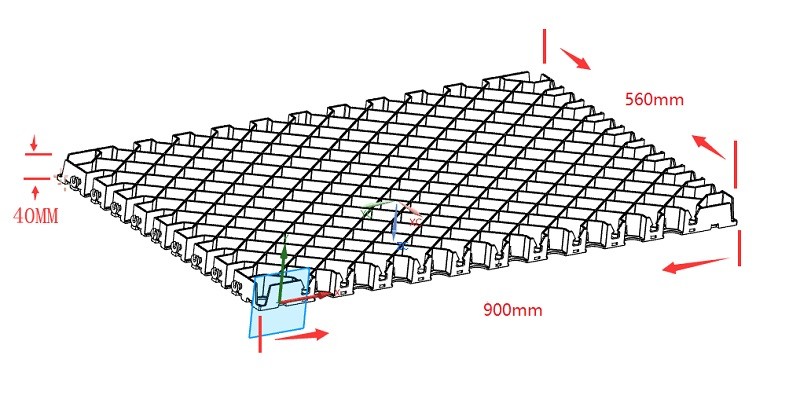

Item No: 90056040
Size: 900 x 560 x 40mm
Material: PP
Weight:3.4KGS/pc
Pressure Strength: 200ton/sqm
Working Temperature: -40℃ --- 90℃
Life: at least 10 years in neutral ground of 4<PH<9
Anti UV: according to GB/T 18820, UPE>30 T (UVA)AV <5%, qualified
Package: 55pcs/pallet with film wrapped
Loading Capacity: 500sqm=1x20ft container
                              1210sqm=1x40HC container

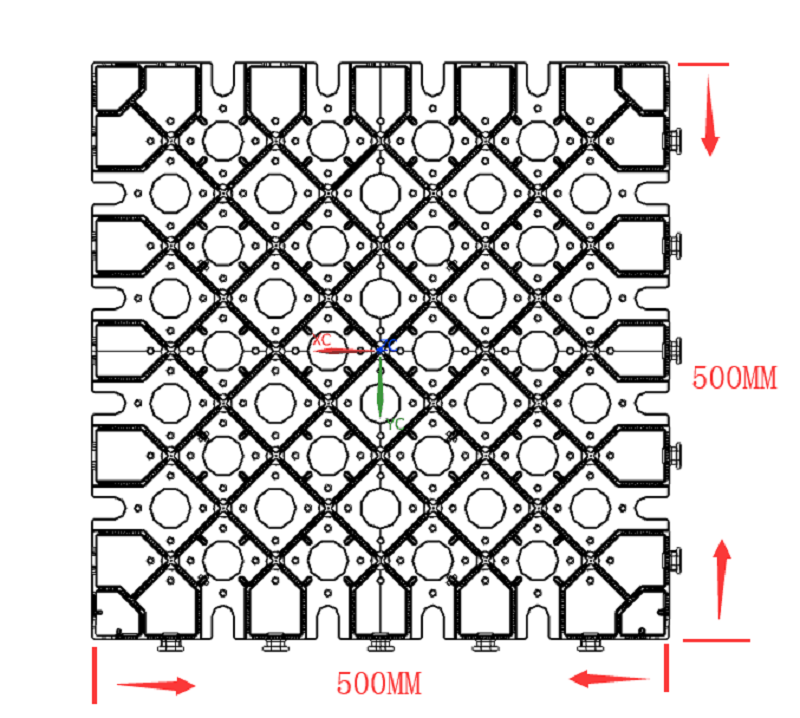

Item No: 50050040
Size: 500 x 500 x 40mm
Material: PP
Weight:1.1KGS/pc
Pressure Strength: 200ton/sqm
Working Temperature: -40℃ --- 90℃
Life: at least 10 years in neutral ground of 4<PH<9
Anti UV: according to GB/T 18820, UPE>30 T (UVA)AV <5%, qualified
Package: 55pcs/pallet with film wrapped
Loading Capacity: 500sqm=1x20ft container
                              1210sqm=1x40HC container

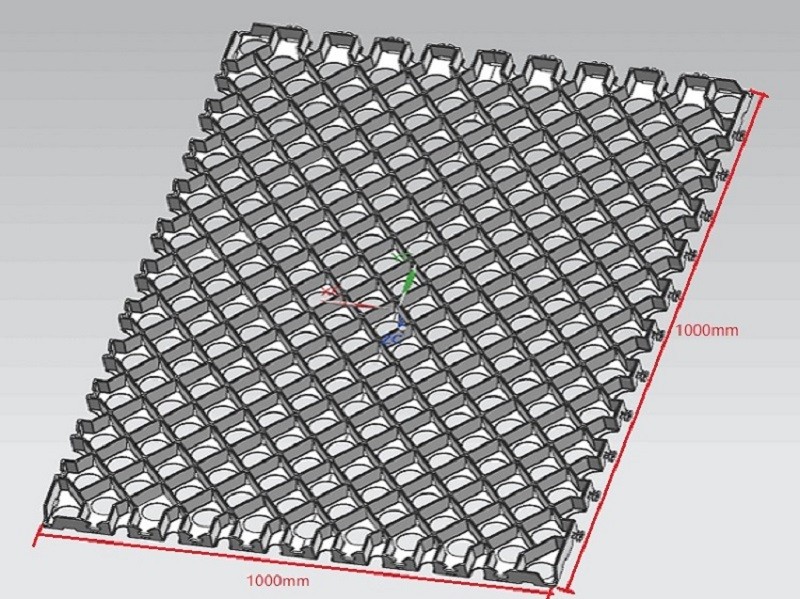

Item No: 1000100040
Size: 1000 x 1000 x 40mm
Material: PP
Weight:5.6KGS/pc
Pressure Strength: 200ton/sqm
Working Temperature: -40℃ --- 90℃
Life: at least 10 years in neutral ground of 4<PH<9
Anti UV: according to GB/T 18820, UPE>30 T (UVA)AV <5%, qualified
Package: 55pcs/pallet with film wrapped
Loading Capacity: 500sqm=1x20ft container
                              1210sqm=1x40HC container
